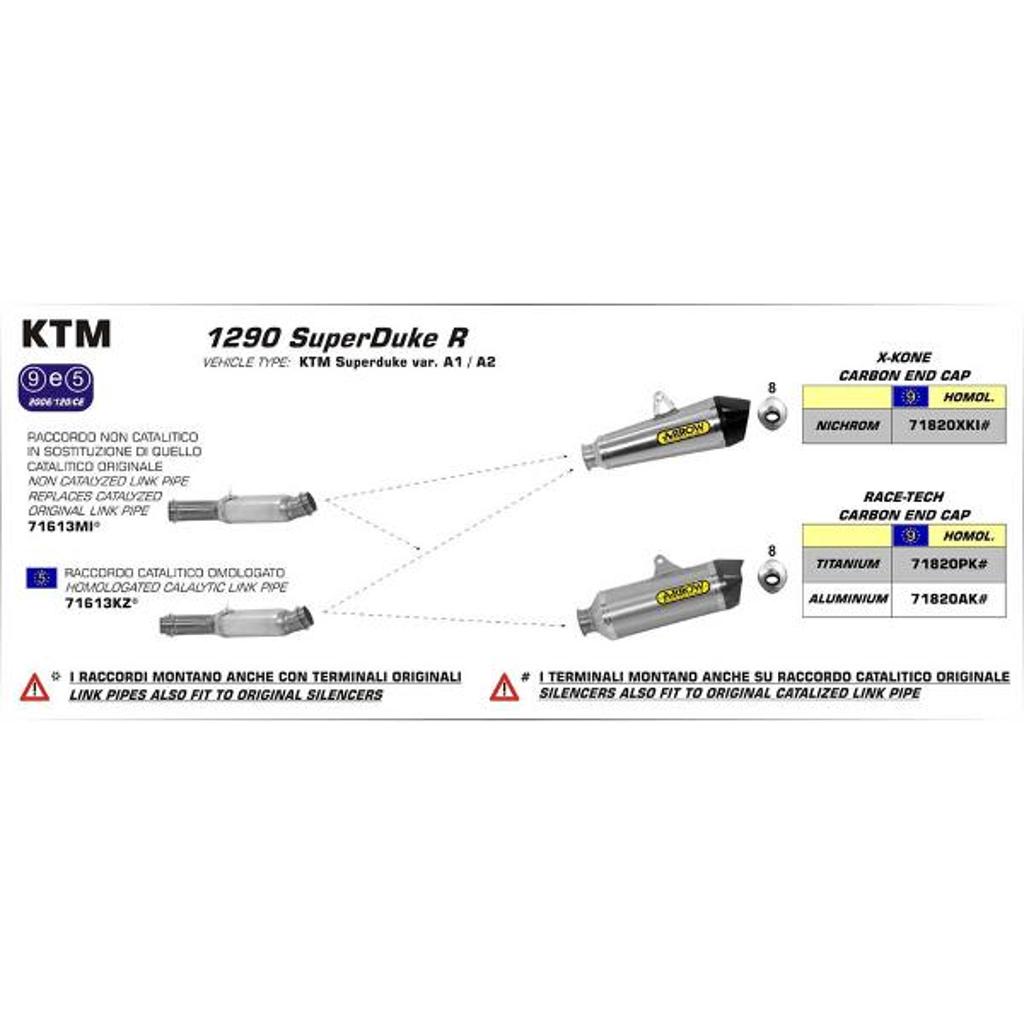

➠ In the diagram, a Broken Line indicates that both items will connect together or will connect with the O.E. corresponding item at time of initial fitment. For 1290 SuperDuke R 2014 - 2016:

For 1290 SuperDuke R 2017 - UP:

Arrow Part Number - 71613MI Fits: KTM - &#9642 1290 Super Duke R for 2014 - UP This ARROW Racing Non Catalyzed Link Pipe is designed to connect to the O.E. exhaust collector system and allow any of the Race-Tech and X-Kone #71820 Series of Silencers to be selected. Or additionally, the O.E. silencer can be retained.

• Made from INOX Stainless Steel [AISI 304 grade] for a durable light weight item that allows performance gains.

Fitting Info - When installing this Link Pipe, the O.E. Exhaust System Valve Servo Unit will be made inactive and therefore the ECU will display a Warning on the dash. Check with a KTM Dealer for resolution or purchase and install an AfterMarket 'Servo Eliminator Kit'. For additional ARROW info, please click on the following link - ARROW Technical Notice Specifications for LINK-PIPE - 71613MIFeatures Details

Link Pipe material stainless steel

Silencer mounting Welded bracket

Junction (inlet) diameter (mm) 60.0

Junction (outlet) diameter (mm) 60.0

Sensor plug provision No

Weight (Kg) 1.60
