For: 2014 > 2020 20" src="https://www.linkint.com.au/libraries/images/brand-arrow-schemes/Yamaha_MT-07_14-20.jpg" /> ➠ In the diagram, a Solid Line indicates that the connected items are required for initial fitment and are purchased separately. Arrow Part Number - 71817XKN

• The THUNDER Silencer has a Diamond Oval body shape formed using Aluminium with an anodized silver finish.

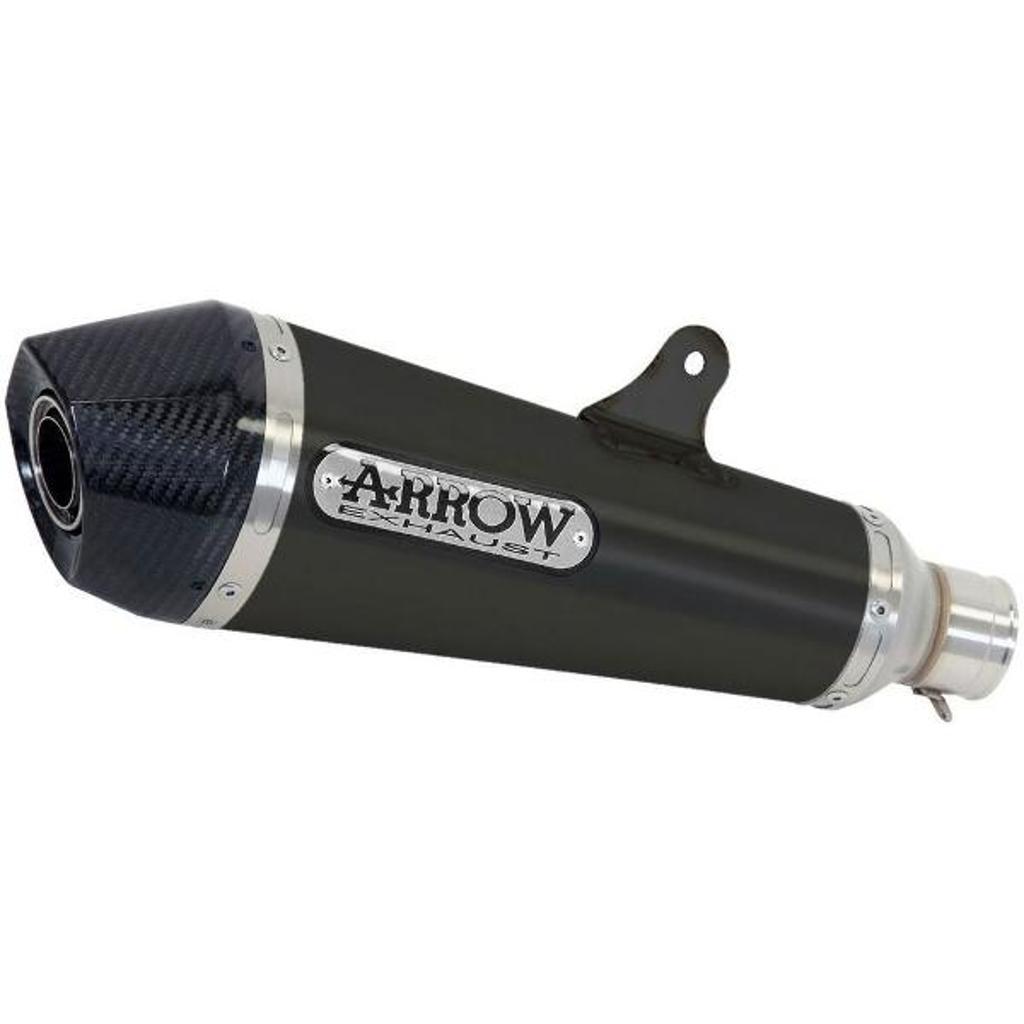

• The X-KONE Silencer has a conical body shape formed using Nichrom (Stainless steel alloy) with a satin black finish.
• The silencer is supported with a fixed welded brackect for mounting.
• The End Cap [#8 profile] is created using carbon fibre for a modern stylish finish.
• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States).
• Note - For correct initial fitment, this silencer will require the ARROW Racing Collector 'High' unit - Part# 71605MI Alternatively, the ARROW Racing Collector 'Low' unit - Part# 71655MI

• Note - When fitting to a LAMS approved model, this will terminate the LAMS certification.
  Specifications for X-KONE Silencer - 71817XKNFeatures Details

  Silencer material Stainless steel Dark

  Rear endcap material Carbon fibre

  Silencer inner parts material Stainless steel

  Silencer mounting Welded fixed bracket

  Silencer body length (mm) 300

  Junction (inlet) diameter (mm) 54

  Junction (outlet) diameter (mm) 50

  dB Killer Yes

  Weight (Kg) 1.97
