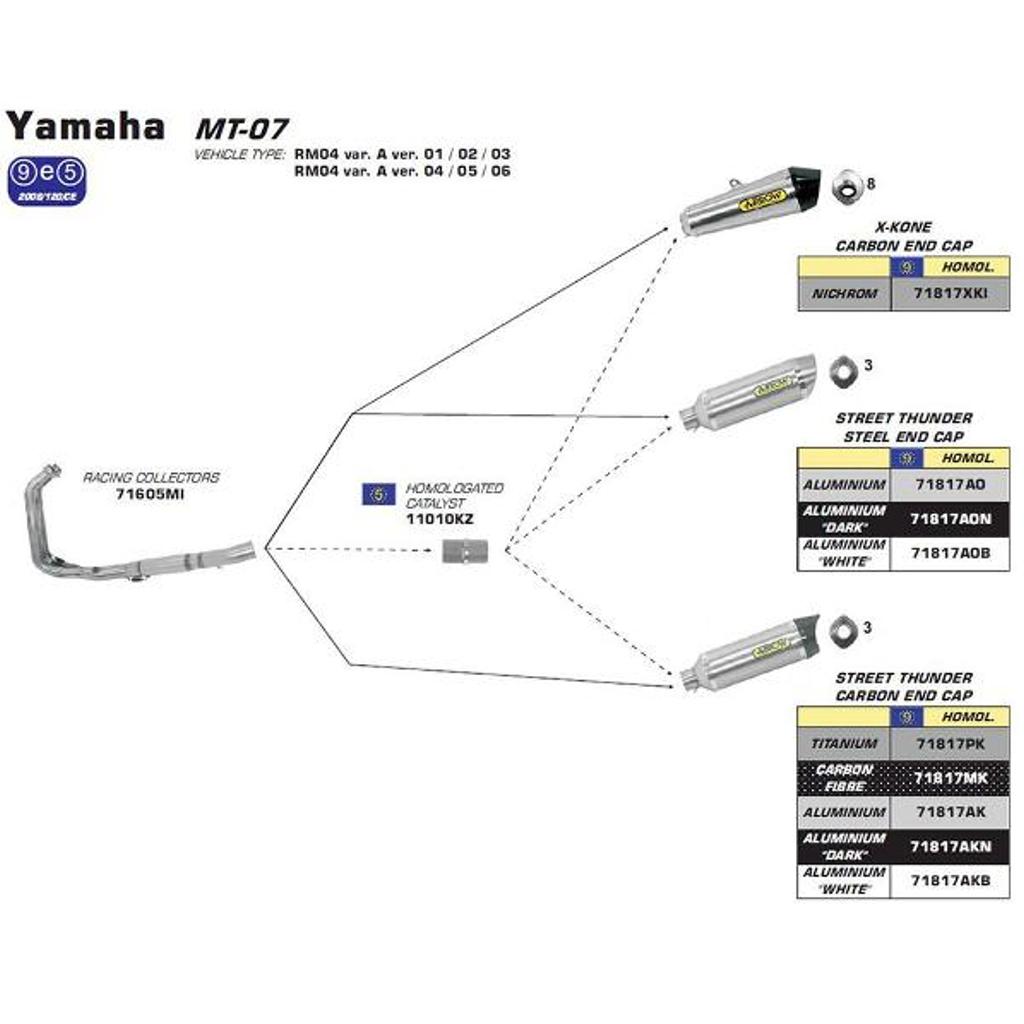

For: 2014 > 2020 20" src="https://www.linkint.com.au/libraries/images/brand-arrow-schemes/Yamaha_MT-07_14-20.jpg" /> ➠ In the diagram, a Solid Line indicates that the connected items are required for initial fitment and are purchased separately. Arrow Part Number - 71817MK

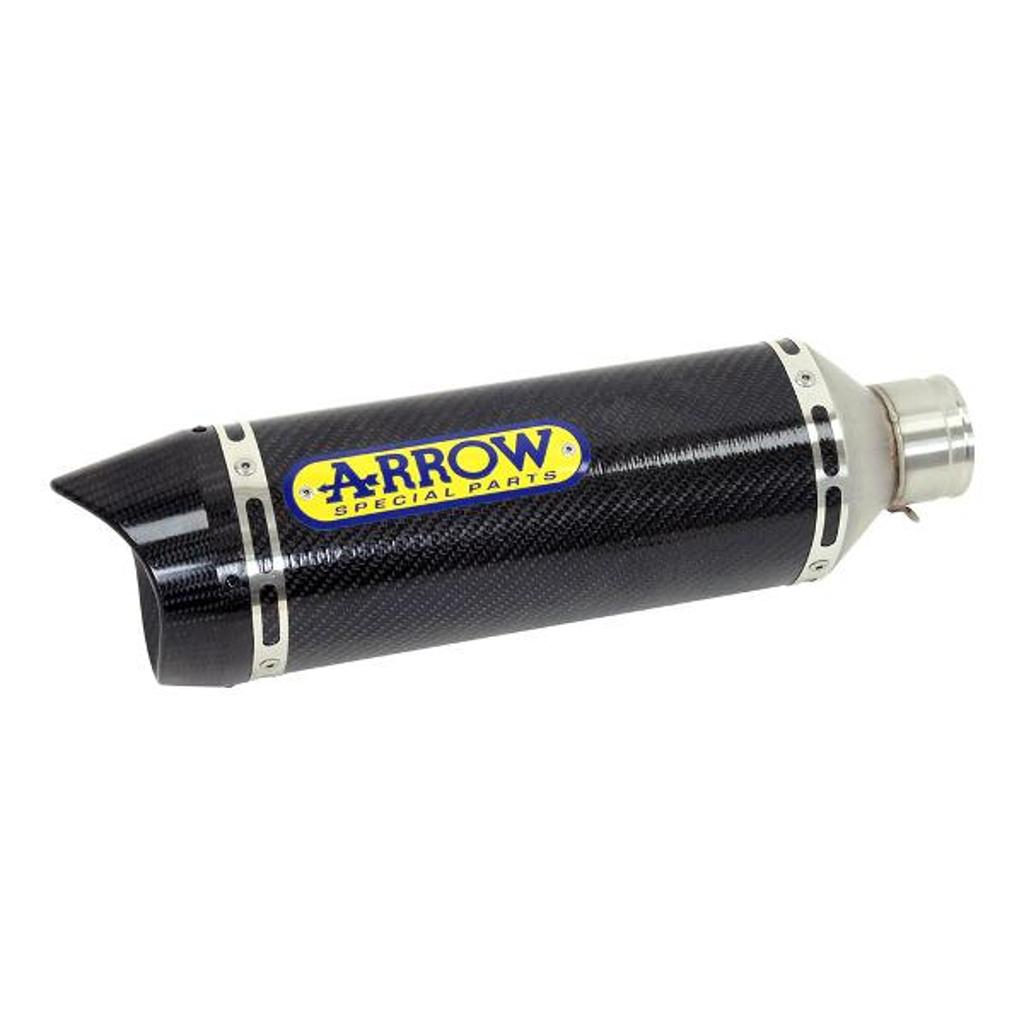

• The THUNDER Silencer has a Diamond Oval body formed using Carbon Fibre with an glossy black carbon weave pattern.
• The silencer is supported by a stainless steel mounting clamp with a synthetic rubber insert.
• The End Cap [#3 profile] is created using carbon fibre for a modern stylish finish.
• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States).
• Note - For correct initial fitment, this silencer will require the ARROW Racing Collector 'High' unit - Part# 71605MI Alternatively, the ARROW Racing Collector 'Low' unit - Part# 71655MI

• Note - When fitting to a LAMS approved model, this will terminate the LAMS certification.
  Specifications for THUNDER Silencer - 71817MKFeatures Details

  Silencer material Carbon Fibre

  Rear endcap material Carbon Fibre

  Silencer inner parts material stainless steel

  Silencer mounting Stainless Steel Clamp

  Silencer body length (mm) 270

  Junction (inlet) diameter (mm) 54

  Junction (outlet) diameter (mm) 50

  dB Killer Yes

  Weight (Kg) 1.77
