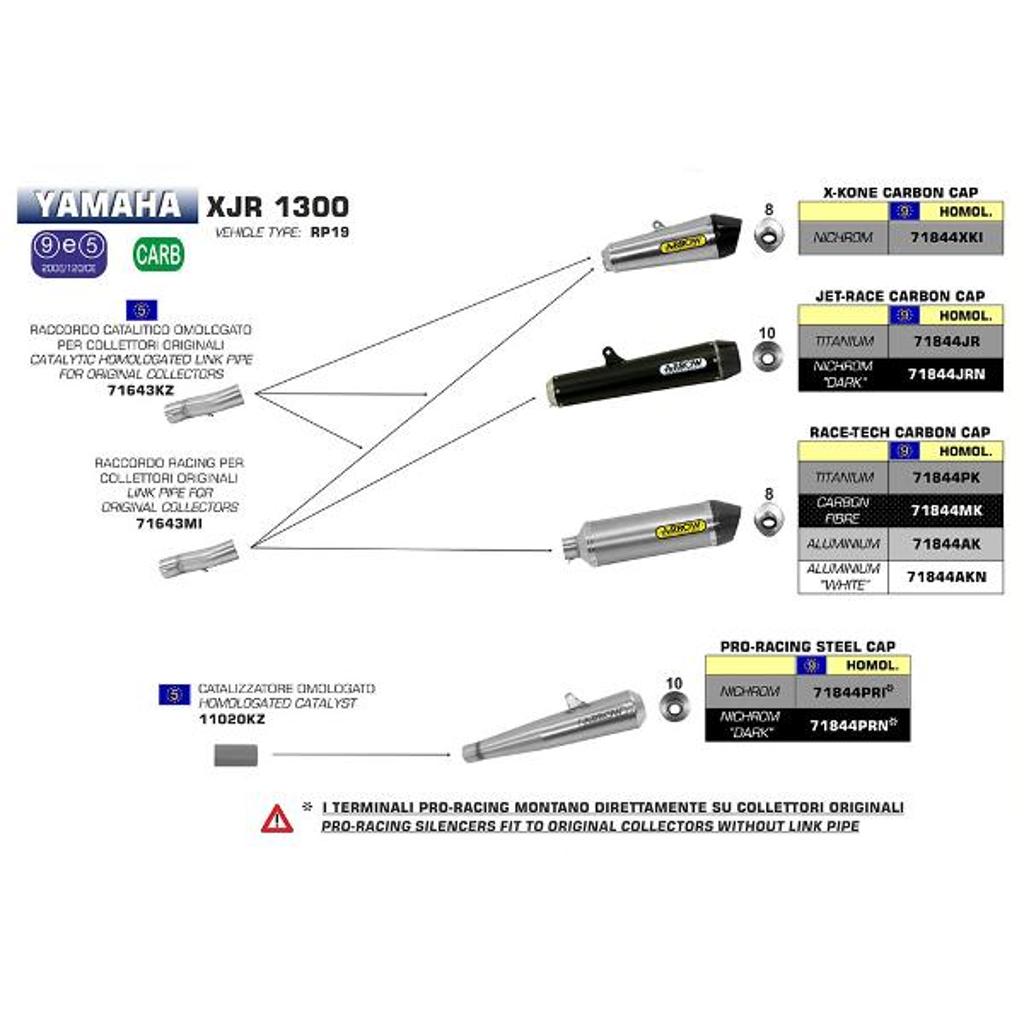

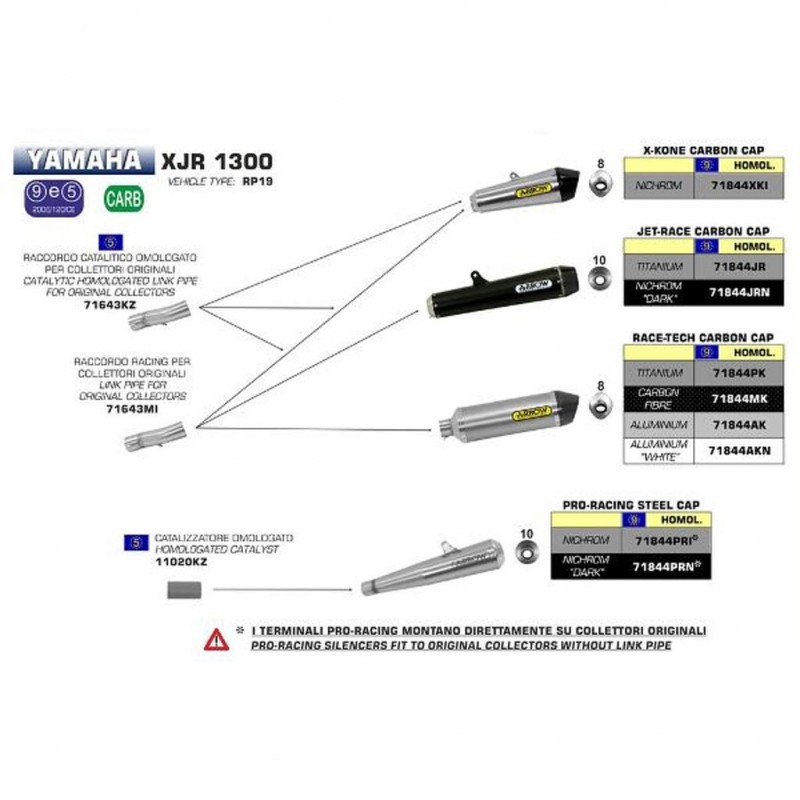

For: 2007 > 2017 17" src="https://www.linkint.com.au/libraries/images/brand-arrow-schemes/Yamaha_XJR_1300_07-17.jpg" /> ➠ In the diagram above, a Solid Line indicates that the connected items are required for initial fitment and are purchased separately. Arrow Part Number - 71844PRI

• The Pro-Racing Silencer has the tapered profile in Nichrom (stainless steel alloy) with a satin silver finish.
• The silencer is secured to the frame mounting point by a fixed steel bracket.
• The End Cap is created in stainless steel for the classic look.
• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States).

• Note -For correct fitment, this silencer is designed to be directly connected to the O.E. exhaust headers / collector unit. Specifications for PRO-RACING Silencer - 71844PRIFeatures Details

  Silencer material Stainless steel

  Rear endcap material Stainless steel

  Silencer inner parts material Stainless steel

  Silencer mounting Welded mount

  Silencer body length (mm) 450

  Junction (inlet) diameter (mm) 53

  Junction (outlet) diameter (mm) 50

  dB Killer Yes

  Weight (Kg) 2,43
