For : GSF / GSX -F 650 & 1250 models Fits: GSF 650 Bandit 2007 - 2013 & GSX 650 F 2007 - 2015

Fits: GSF 1250 Bandit 2007 - 2016 & GSX 1250 FA 2010 - 2016

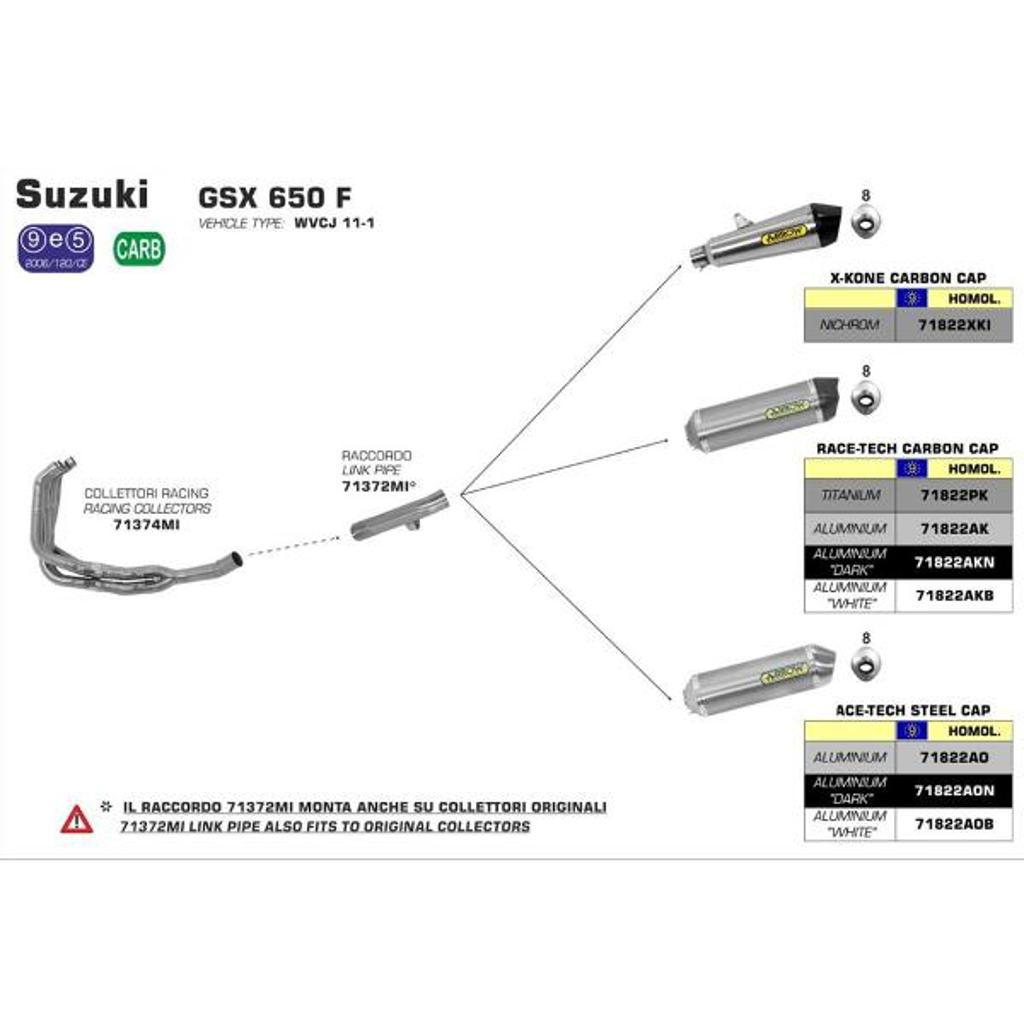

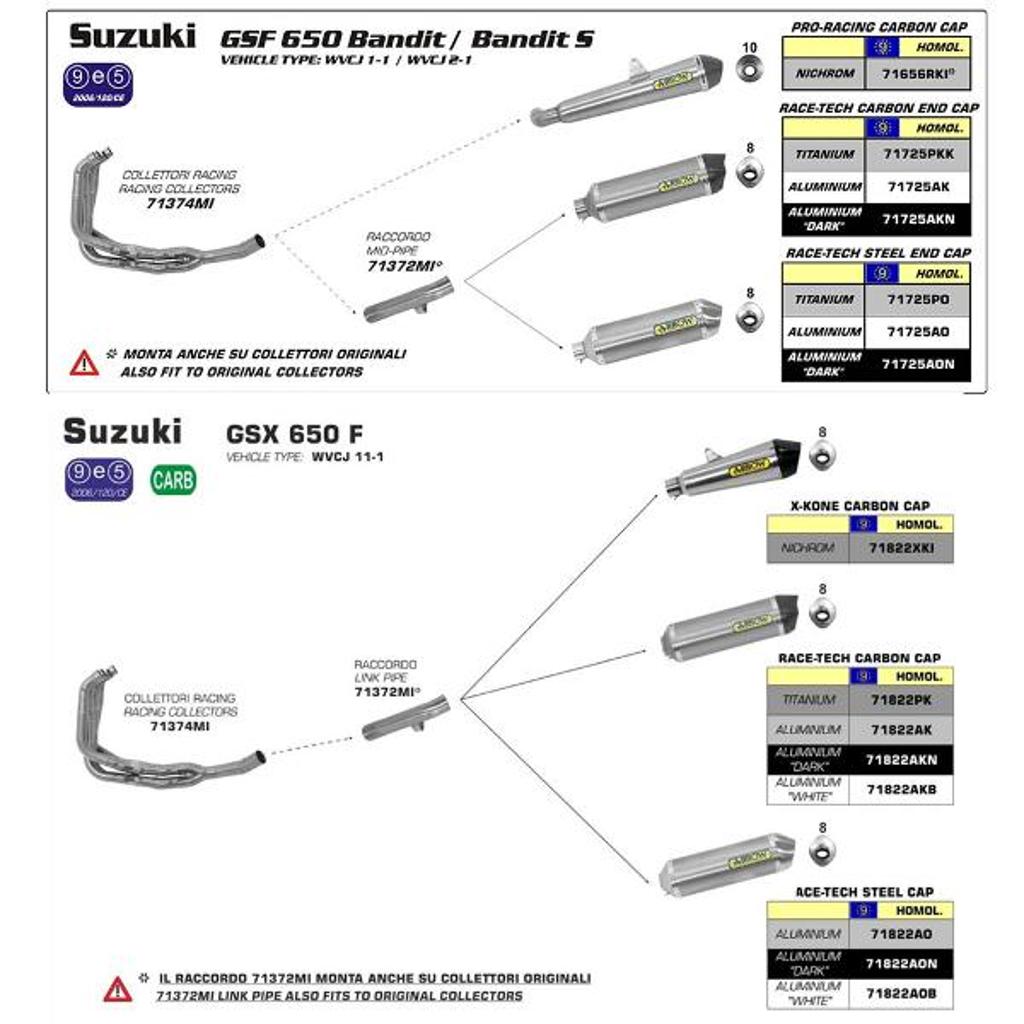

➠ In the diagrams, a Solid Line indicates that the connected items are required for initial fitment. Arrow Part Number - 71372MI This ARROW Link Pipe is required to allow of any of the ARROW #71822 silencer series designed for these models to connect to the ARROW Racing Collectors - Part# 71374MI Or alternatively, the O.E. exhaust headers / collector can be retained.

• Made from Stainless Steel [AISI 304 grade] for a durable light weight item. Specifications for Link Pipe - 71372MIFeatures Details

  Link Pipe material Stainless steel

  Junction (inlet) diameter (mm) 54.0

  Junction (outlet) diameter (mm) 54.0

  Sensor plug provision No

  Weight (Kg) 0.60
