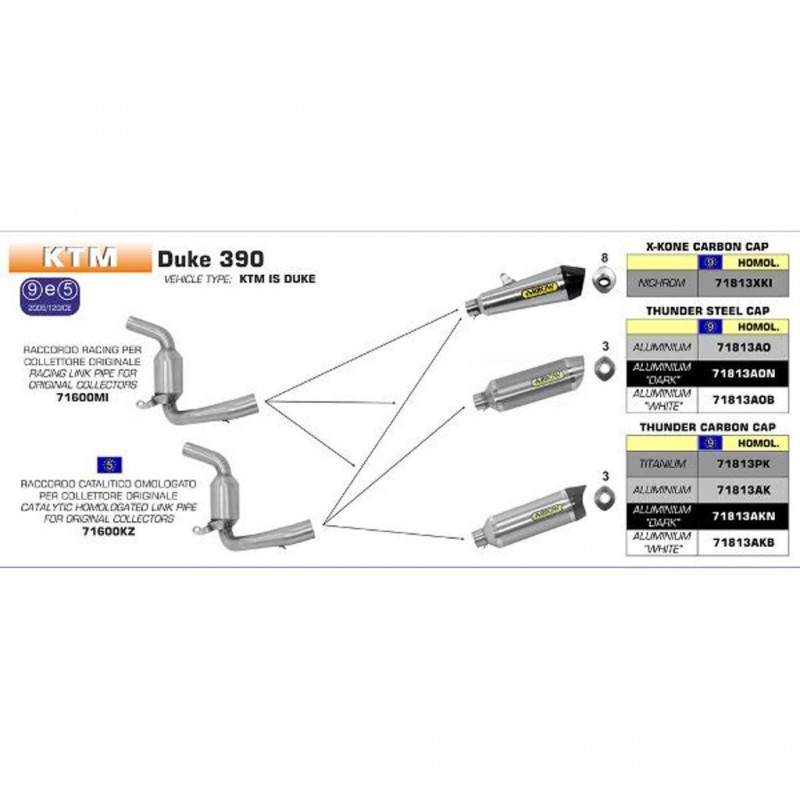

Fits: 2013 - 2016 Note: In the diagram, a Solid Line indicates that the connected items are required and should be purchased separately!

For 2015 - 2016 Note: In the diagram, a Solid Line indicates that the connected items are required and should be purchased separately!

➠ In both diagrams, a Solid Line indicates that the connected items are required for initial fitment.

Arrow Part Number - 71813AO Note - For correct fitment on Duke 390, this silencer and the ARROW Racing Non Catalytic Link Pipe - Part# 71600MI are required together to connect to the O.E. Header pipe at the time of initial fitment. Note - For correct fitment on RC 390, this silencer and the ARROW Racing Non Catalytic Link Pipe - Part# 71619MI are required together to connect to the O.E. Header pipe at the time of initial fitment.

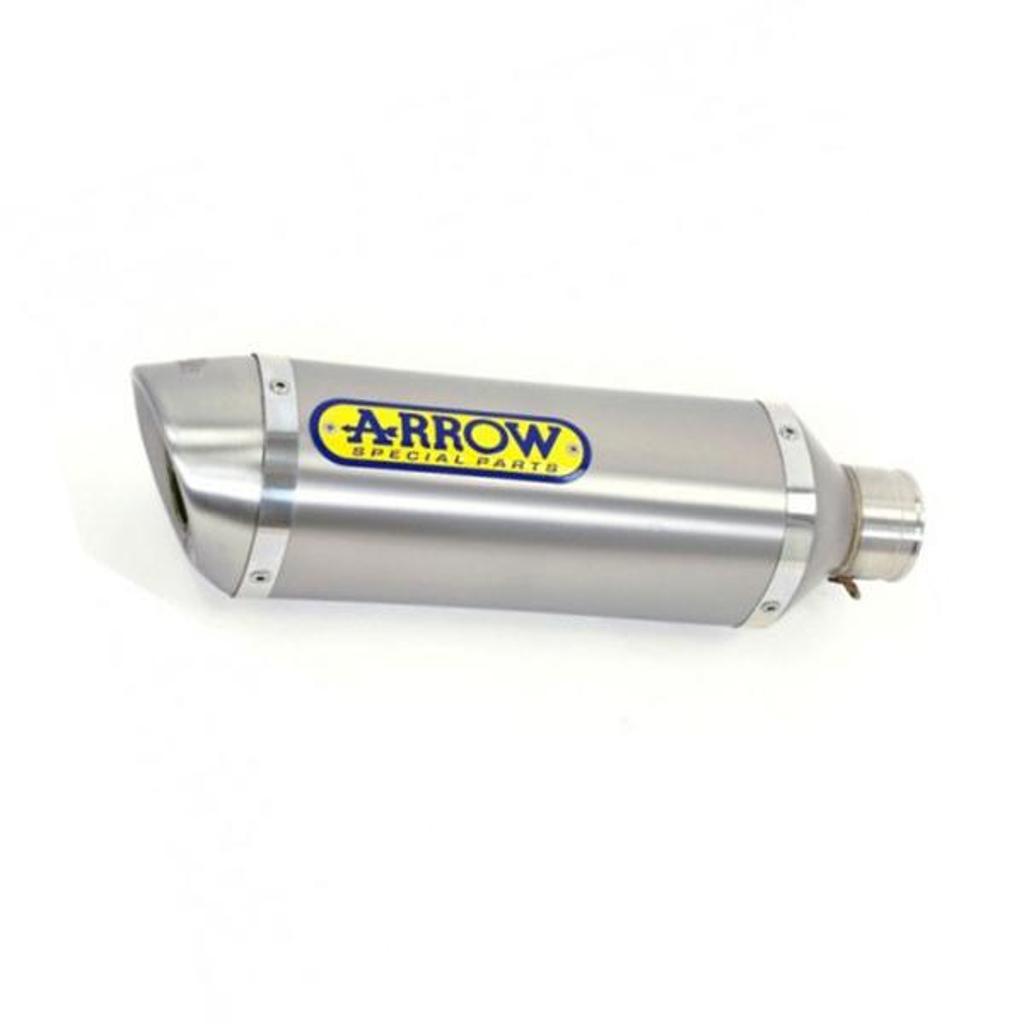

• The THUNDER Silencer has the Diamond Oval profile in Aluminium with an anodized silver finish. The silencer is supported with a stainless steel mounting clamp that has a synthetic rubber insert.
• The End Cap is formed from stainless steel for the classic O.E. look.

• This ARROW Homologated silencer complies with ADR 83:00 Noise Standard (legal in all Australian States). Specifications for THUNDER Silencer - 71813AOFeatures Details

  Silencer material Aluminium

  Rear endcap material Stainless steel

  Silencer inner parts material stainless steel

  Silencer mounting Stainless Steel Clamp

  Silencer body length (mm) 270

  Junction (inlet) diameter (mm) 54

  Junction (outlet) diameter (mm) 50

  dB Killer Yes

  Weight (Kg) 1.97
